Tracking HTML5 Videos with GTM

Almost all new browsers support the video playing using HTML5 including mobiles and tablets, so it may be way to embed videos that can be considerated when publishing videos on our pages. HTML5 has support for most of the videos format used on internet, even YouTube has been running an HTML5 version of their site for a long. So we’re going to teach you how you can track those videos embed’s using the built-in API and Event Listeners. We have setup a working page example at: http://stage.tags.ninja/html5.php Insert an HTML5 video player on a page, is as simple as adding this code:

So let’s start tracking our videos step by step, what features is going to have this tracking:

  • Tracking of video percent played, the play button clicks, the pause button clicks, and video viewing
  • It will keep a track of what % buckets of the video have been already sent to save hits.
  • It will support multiple video embeds on the same page

Tracking Flow

  1. Check if  there is any <video> tag in the current page. ( We don’t want to get the user’s browser executing this code if it’s not going to do anything )
  2. Wait till page’s DOM has been fully loaded ( gtm.dom )
  3. Fire the HTML5 Video Tracking Tag.

Tags, Rules and Macros

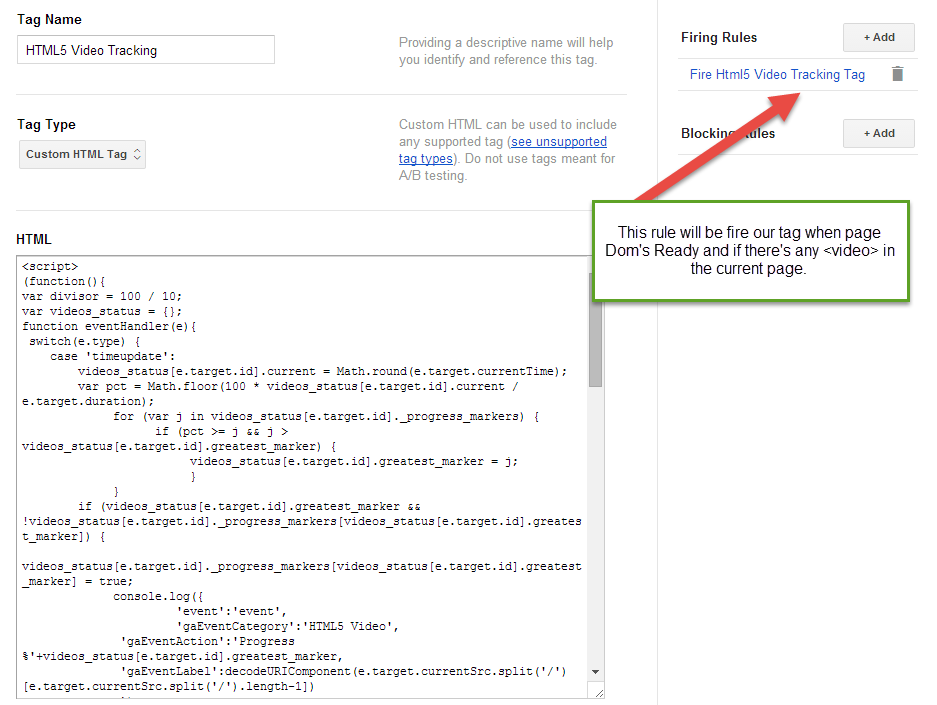

Tag

You can scroll down to see a fully comented code for this tag. The tag will have just 1 rule that will check for gtm.dom event from Google Tag Manager, and for the <video> tags presence that will be read using a Macro. html5_video_gtm_tag

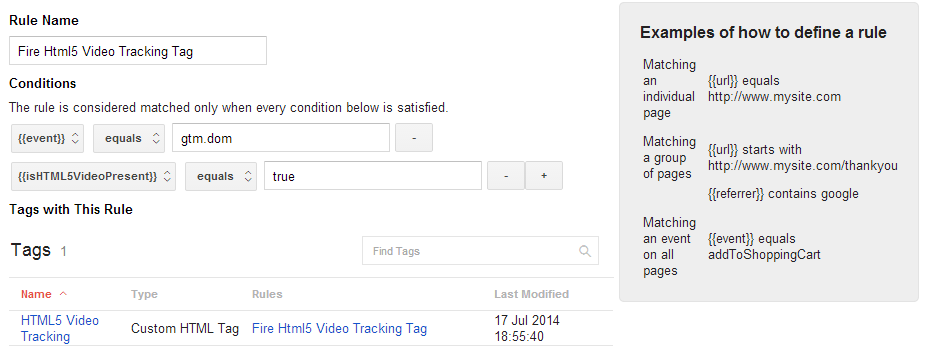

Rule

html5_video_gtm_rule

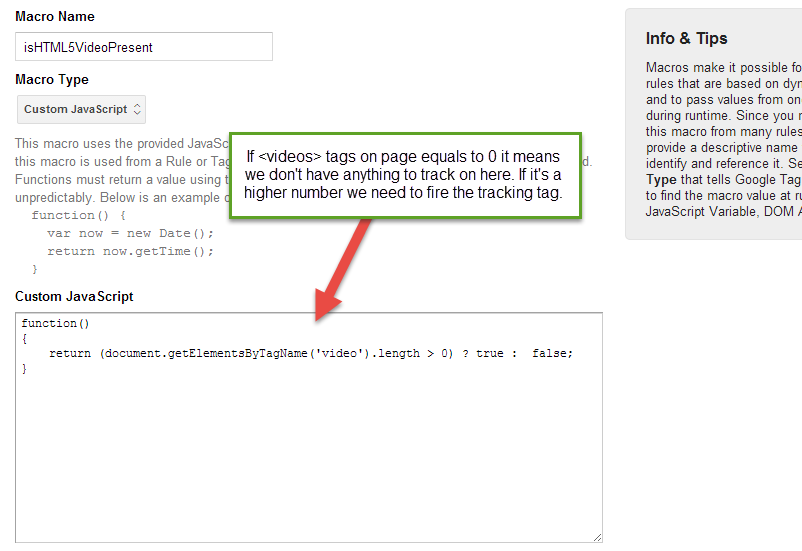

Macro

html5_video_gtm_macro

Thanks flys to Eliyahu Gusovsky from Analytics Ninja from who I learnt the markers piece of code.

Source Code

<script>
// Let's wrap everything inside a function so variables are not defined as globals
(function() {
    // This is gonna our percent buckets ( 10%-90% )
    var divisor = 10;
    // We're going to save our players status on this object.
    var videos_status = {};
    // This is the funcion that is gonna handle the event sent by the player listeners
    function eventHandler(e) {
        switch (e.type) {
            // This event type is sent everytime the player updated it's current time,
            // We're using for the % of the video played.
        case 'timeupdate':
            // Let's set the save the current player's video time in our status object
            videos_status[e.target.id].current = Math.round(e.target.currentTime);
            // We just want to send the percent events once
            var pct = Math.floor(100 * videos_status[e.target.id].current / e.target.duration);
            for (var j in videos_status[e.target.id]._progress_markers) {
                if (pct >= j && j > videos_status[e.target.id].greatest_marker) {
                    videos_status[e.target.id].greatest_marker = j;
                }
            }
            // current bucket hasn't been already sent to GA?, let's push it to GTM
            if (videos_status[e.target.id].greatest_marker && !videos_status[e.target.id]._progress_markers[videos_status[e.target.id].greatest_marker]) {
                videos_status[e.target.id]._progress_markers[videos_status[e.target.id].greatest_marker] = true;
                dataLayer.push({
                    'event': 'gaEvent',
                    'gaEventCategory': 'HTML5 Video',
                    'gaEventAction': 'Progress %' + videos_status[e.target.id].greatest_marker,
                    // We are using sanitizing the current video src string, and getting just the video name part
                    'gaEventLabel': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
                });
            }
            break;
            // This event is fired when user's click on the play button
        case 'play':
            dataLayer.push({
                'event': 'gaEvent',
                'gaEventCategory': 'HTML5 Video',
                'gaEventAction': 'Play',
                'gaEventLabel': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
            });
            break;
            // This event is fied when user's click on the pause button
        case 'pause':
            dataLayer.push({
                'event': 'gaEvent',
                'gaEventCategory': 'HTML5 Video',
                'gaEventAction': 'Pause',
                'gaEventLabel': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1]),
                'gaEventValue': videos_status[e.target.id].current
            });
            break;
            // If the user ends playing the video, an Finish video will be pushed ( This equals to % played = 100 )
        case 'ended':
            dataLayer.push({
                'event': 'gaEvent',
                'gaEventCategory': 'HTML5 Video',
                'gaEventAction': 'Finished',
                'gaEventLabel': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
            });
            break;
        default:
            break;
        }
    }
    // We need to configure the listeners
    // Let's grab all the the "video" objects on the current page
    var videos = document.getElementsByTagName('video');
    for (var i = 0; i < videos.length; i++) {
        // In order to have some id to reference in our status object, we are adding an id to the video objects
        // that don't have an id attribute.
        var videoTagId;
        if (!videos[i].getAttribute('id')) {
            // Generate a random alphanumeric string to use is as the id
            videoTagId = 'html5_video_' + Math.random().toString(36).slice(2);
            videos[i].setAttribute('id', videoTagId);
        }// Current video has alredy a id attribute, then let's use it <img draggable="false" class="emoji" alt="🙂" src="https://s.w.org/images/core/emoji/2/svg/1f642.svg">
        else {
            videoTagId = videos[i].getAttribute('id');
        }
        // Video Status Object declaration
        videos_status[videoTagId] = {};
        // We'll save the highest percent mark played by the user in the current video.
        videos_status[videoTagId].greatest_marker = 0;
        // Let's set the progress markers, so we can know afterwards which ones have been already sent.
        videos_status[videoTagId]._progress_markers = {};
        for (j = 0; j < 100; j++) {
            videos_status[videoTagId].progress_point = divisor * Math.floor(j / divisor);
            videos_status[videoTagId]._progress_markers[videos_status[videoTagId].progress_point] = false;
        }
        // On page DOM, all players currentTime is 0
        videos_status[videoTagId].current = 0;
        // Now we're setting the event listeners.
        videos[i].addEventListener("play", eventHandler, false);
        videos[i].addEventListener("pause", eventHandler, false);
        videos[i].addEventListener("ended", eventHandler, false);
        videos[i].addEventListener("timeupdate", eventHandler, false);
        videos[i].addEventListener("ended", eventHandler, false);
    }
})();
<script>



David Vallejo

Google Analytics Consultant and implementer. I have some experience with Google Tag Manager
Follow me: @thyng

Author: David Vallejo

Google Analytics Consultant and implementer. I have some experience with Google Tag Manager Follow me: @thyng

16 thoughts on “Tracking HTML5 Videos with GTM”

  1. Hey,

    I have been using your script and it has been working really well. Thank you very much for posting this.

    I do have a dilemma you may be able to help solve, or have already solved yourself.

    We recently implemented a video that plays on a loop. Your script only captures the first time around. I am curious if there is something I can add to the script to get tracking the second time the video is played, and the third time, and the fourth time, etc.

    Looking forward to your response.

    1. Max, I’m having a problem getting the code to register in Google Analytics. While in preview mode, I can see the “gaEvent,” but they never register within Google Analytics. Any help that you could provide would be appreciated.

  2. Thnx David for you blog it have been a great deal of help! Would love to see a vimeo solution 🙂
    Have a solution for yt videos that works out uf the box if you and some other stuff that im currently are trying out if u are interested:-)

  3. Hi David,

    Thanks for the very helpful post.

    I’m trying to translate it to the latest version of GTM — have set up the custom variable of “isHTML5VideoPresent”, added new target that fires when Event equals gtm.dom and isHTML5VideoPresent equals true. I’ve also created the new Custom HTML tag, using the code above.

    So far no luck. Any suggestions on how to debug this?

    1. Hi Dave — After some messing around, I got this work. First, go though the code above and rename each event, giving each (Play, Pause etc.) a unique name. (I changed “gaEvent” to “gaEventPlay,” “gaEventPause” etc.) Then, you need to set up a new GTM tag. The type to use is “Universal Analytics — Event.” You enter in you GA account tracking ID and your event parameters (yeah, I know they are already in the code above. but I don’t know how to get them into GA.) Then, make a new “Rule.” Set up the “Rule” to fire when the macro “{{event}}” “equals” the event name you set above (ie gaEventPlay, gaEventPause). That did the trick for me.

      1. When setting up the following code as a new customized javascript, it doesn’t work. Why? Could you give some tips?

        Function ()
        {

        return (document.getElementsByTagName (‘video’).length > 0) ? true: false
        }

        Then, if I were right, I’d need to add a “trigger” and a new UA tags by setting up customized HTML.

  4. Thanks so much for this! This is just what I’ve been looking for. Do I need to add my GA tracking ID number into this set up? When I’ve used the Link Click Listener in the past, I’ve had to enter my account ID when I set up the accompanying GA event. This code obviously has the GA events, but how does it get fired into my account?

  5. David,

    Thanks for putting this together, but I’m having trouble getting Google Analytics to register the events. I’m at a loss.

    If anyone can help by pointing me in the right direction that would be much appreciated.

  6. Thanks for these explanation, we’re trying to follow the activity around the videos of our website, and as using GTM is not always easy, we followed your explanation from A to Z… but at the end, in preview mode, our tag is not firing, do you have any explanation of why it doesn’t?
    Thanks a lot for your help,
